Bathtub Enclosures

Glass Type

• 3/16" (4mm) tempered safety glass (Can 2-12. 1-79 National Standard or US Equivalent)
• Clear or Obscure glass - opaque or raindrop finish
• Silk Screen: horizontal lined pattern

Framing

• European Inspired Curved Header Design
• Anodized aluminum extrusion
• 1 5/8" (41mm) wall jambs to accommodate acrylic modules
• Sure-Glide track keeps 2 or 3 panels in place with grooves or channels
• Frame Color Brite #11 chrome or Brite #12 gold
• Powder Coating: White #17 electrostatic baked enamel finish
• Water tight seal

Maintenance & Warranty

• Easy install and easy clean surface
• No grooves or tracks
• 10 year limited warranty on parts
• 1 year labour warranty on installation

Sliding Shower Entry Doors

General Specifications

• Sliding 2 & 3 panel walk in shower doors
• Fits 32" (813mm) to 60" (1219mm) opening
• Standard height 71" (1803mm)
• Framed or frameless doors

Glass Type

• 3/16" (4mm), 1/4" (6mm) or 3/8" (10mm) tempered safety glass
• Can 2-12.1-79 National Standard or US Equivalent, which meets or exceeds all international safety standards
• Clear or Obscure glass: opaque or raindrop finish
• Silk Screen: horizontal lined pattern & other patterns

Framing

• European Inspired Curved Header Design
• High polished anodized aluminum extrusions
• Sure-glide track eliminates buildup of soap and dirt in track
• 1 5/8" wall jambs accommodate most acrylic tub enclosures
• Powder Coating: White #17 electrostatic baked enamel finish
• Electrostatically powder painted and baked colour enamel won't chip or crack
• 1" (254mm) adjustable wall jambs for out of square installations
• Frame Color: Brite #11 chrome or Brite #12 gold
• Water tight seals

Maintenance & Warranty

• Easy install and easy clean surfaces
• 10 year limited warranty on parts
• 1 year labour warranty on installation

Standard Framed Doors & Enclosures

Glass Type

• 3/16" (4mm) tempered safety glass (Can 2-12.1-79 National Standard or US Equivalent)
• Clear or Obscure glass: opaque or raindrop finish
• Silk Screen: horizontal lined pattern

Framing

• High polished anodized aluminum extrusions
• 1" (254mm) adjustable wall jambs for out of square installations
• Frame Color: Brite #11 chrome or Brite #12 gold
• Powder Coating: White #17 electrostatic baked enamel finish
• Water tight seals
• Fits openings from 19.5" (495mm) - 36.5" (927mm) wide
• Standard Height is 65 1/4" (1657mm)

Maintenance & Warranty

• Easy install and easy clean surfaces
• 10 year limited warranty on parts
• 1 year labour warranty on installation

Frameless Doors & Enclosures

Tempered Glass

• Shower door(s) and panels are constructed with clear or obscure glass.
• 1/4" (6mm), 3/8" (10mm) or 1/2" (12mm) tempered safety glass conforming to CPSC standard or CAN 2-12.1-79 Federal Specfications DD-G-1403B.
• All exposed edges polished and rounded.
• All holes and notches to be drilled prior to the tempering process.
• Tempered glass has greater resistance to thermally induced stress than heat-strenghtened or annealed glass.

Aluminum Channels & Hardware

• Extruded aluminum components are #6463-T5 alloy
• 3/4" (18mm) deep profile suitable for 3/8" (10mm) or 1/2" (12mm) tempered glass
• Buffed and bright dip anodized or powder coat painted
• Screws or fasteners are stainless steel to prevent rust or corrosion

Hinges

• Hinges on heavy glass products are constructed of #320 stainless steel or solid brass.
• Product guaranteed to last the lifetime of the enclosure with little risk of degradation or discolouration.
• Most hinges are self centering within 15 degrees of closed position.
• Hinges contain a reversible 5-degree pivot pin to provide a tighter closure into the shower interior.
• CRL Frameless Shower Door Hinges
• Hinge Size, Weight tolerance and width maximum are outlined below.

Hinge Type		2 Hinge	2 Hinge	3 Hinge	3 Hinge
	Glass Thickness	Max Width	Max Weight	Max Width	Max Weight

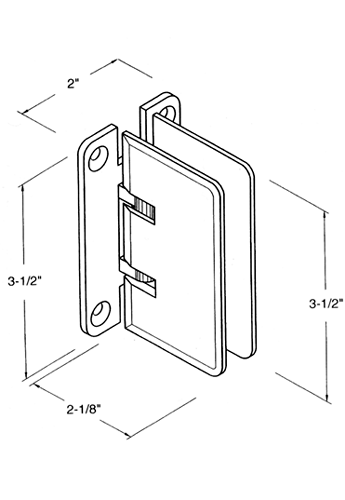

Wall Mount	3/8" (10mm) 1/2" (12mm)	28" 26"	80lbs 80lbs	30" 30"	120lbs 130lbs

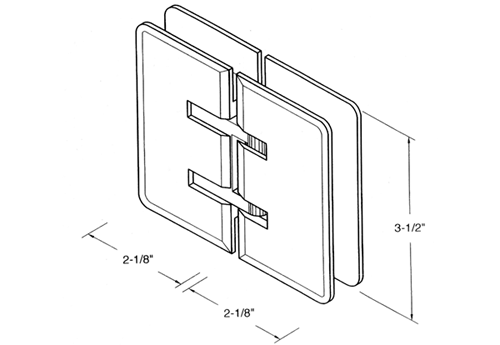

180° Glass-to-Glass	3/8" (10mm) 1/2" (12mm)	28" 26"	80lbs 80lbs	34" 30"	120lbs 130lbs

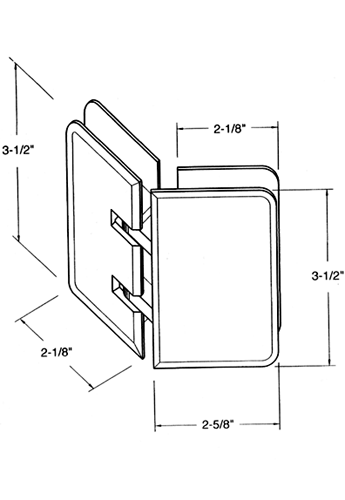

135° Glass-to-Glass	3/8" (10mm)	28"	80lbs	34"	120lbs
(Neo Angle)	1/2" (12mm)	26"	80lbs	30"	130lbs
